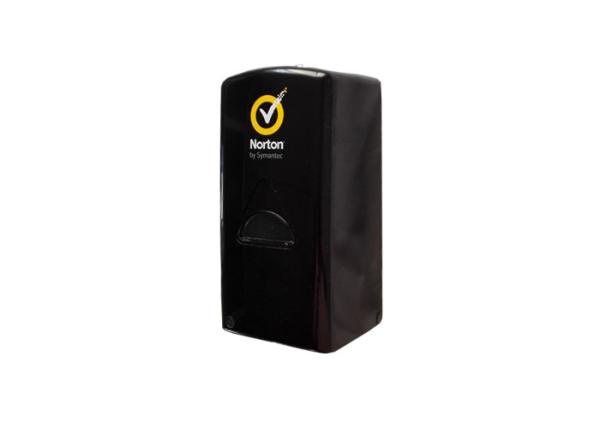

Public Washroom Mounted Touch - Free Soap Dispenser For Hand Wash
DoctorClean® Automatic Hand Sanitizer Dispenser System specializes in manufacturing various types soap dispener series.We
have established a strong sales and marketing network, our products
sales around China and all over the world.For 20 years, adhering to
the "customer first, forge ahead" business philosophy,We are
consistent to provide immediate feedback , adequate cargo spare ,
absolute guarantee of quality and timely delivery .
Product Details:
| Model no.: | DT 800 Black |
| Material: | ABS Plastic |
| Capacity: | 800 ml (max 1000 ml) |
| Function(optional): | Spray, Drop, Foam |
| Sensor distance: | 6-12 cm |
| Droplet(adjustable): | 0.6~0.8ml / 1.1~1.2ml / 1.5~1.7 ml |
| Unit size: | 13.5 * 12.0 * 26.5 cm |
| Unit weight: | 0.85 kg |
| Power: | 4 pcs “C” batteries or AC 110 v ~ 220 v |
| Battery life: | At least 100,000 Dispensing Cycles(DC) |
Features:
1. Smart intelligent electronics skill being adopted ensure sits
high performance. No contact, to effectively prevent
cross-infection of bacteria, prevent human damage & waste.
2. Because of advanced pump fit to all kinds of liquid can be
applicable, like shampoo, liquid soap, sanitizer, etc.
3. Power consumption is very low, battery life reaches more than
100,000 cycles.
4. Flashing LED indicates low battery.
5. There is a device for protect from stealing off.
6. Primary application: school, commercial center, health care,
institutions, hospitals, office, hotel, food factory & etc.
Additional information:
Capacity: 1000 ML, 800 ML
Dispenser: Alcohol Spray Dispenser, Disinfectant Dispenser, Gel
Dispenser, Lotion Dispenser
Dispenser Type: Touch-Free Dispenser
Installation Type: Wall Mount Dispenser
Main Material: ABS plastic
Installation:
Do not install in areas or direct sunlight, make sure there are not
white surface or any other strong reflectors within 30cm below.
Mount the dispenser to the wall by using the enclosed screws and
wall plugs. Make sure the wall surface is cleaned and in good
condition to ensure proper mating of the dispenser to the wall.
Install six (6) Alkaline “C” Cell batteries, 1.5V into the battery chamber which is located on
the back of control box, replace the control box by sliding down.
Must be flush to bottom.
Operation:
Refillable bottle: To fill dispenser, remove the lid and fill with
liquid or gel.
Disposable bag: To fill dispenser, fill with liquid or gel through
the hole which is on the bag, then insert nozzle. Please fill the
nozzle completely with liquid or gel (Press the nozzle & make air
discharged) before installing the new bag in the dispenser to work,
the drop or spray function could be more efficiency.
Open front of box to install liquid bag. Pull the valve hose out
and down, place the liquid bag in box on top of the control box,
place the hose in the channel, make sure the upper collar is
beneath the upper notch and the lower collar fits into the lower
notch.
Dispenses liquid or gel of viscosities ranging from 1,000-5,000
cps. To activate the dispenser, place hand under spout for
approximately one second. Sensing range comes at factory setting of
4-8cm. The sensing range set by the factory is recommended for
optimal performance. Window indicates when fill is required. The
locked, hinged housing opens for re-filling only with the special
key provided. Requires six (6) Alkaline “C” Cell batteries, 1.5V
(not included). Green indicator light signals “IN USE”. Flashing
red light signals “LOW BATTERY”. CE certified.
FAQ
Q1.: Can you produce the hand sanitizer dispenser as per our
design?
A1.: Yes, both OEM & ODM service are available.
Q2.: Can the soap dispenser be printed with our logo?
A2.: yes, for sure, just send us the design & advise the pantone
number, thanks.
Q3.: Can you send me the sample to see the product quality?
A3.: Yes, of course.
Q4.: Are you a cleaning products manufacturer or trade company?
A4.: We are manufacturer, and have specialized in hand hygiene
products for more than 20 years.
Q5.: Can I place a trial order if the quantity is less than MOQ?
A5.: For the first trial order, yes, we can make an exception for
you, if there's any assistance needed on the marketing, pls do feel free to
us at any time.
